Excalibur Scaffolding Ring bolt M12 X 150mm - Pack of 25

SKU
Excalibur Scaffolding Ring bolt M12 X 150mm - Pack of 25
£87.00 £104.40

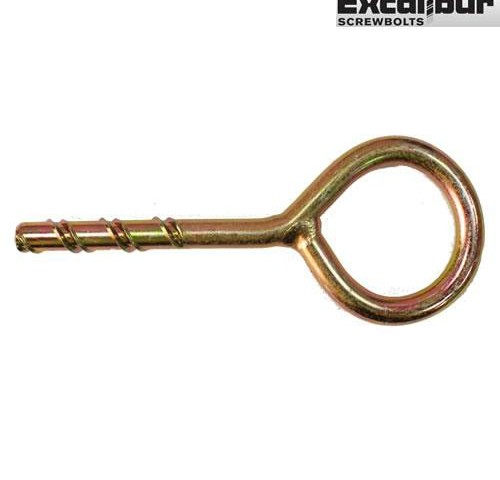

  • The Excalibur Scaffold Ring Tie is used for the fixing of a vertical scaffold tube to a structure – safely, conveniently and securely.
  • A major advantage of this type of anchor lies in it being a once piece tie; when the project is finished and the scaffold struck, there is nothing left in the wall which may lead to further issues and the hole can be simply plugged.
  • During manufacture, the eye part is closed by a weld and when tested gave an ultimate tensile failure load of 50kN. With a suggested safety factor of 5:1.
  • The SWL of 10kN exceeds that of the scaffold clip and is on par with the load   imposed on a brick wall.
  • Supplied in boxes of 25



Material Boron Steel BS3111/9/2.1.A
Finish Zinc & Yellow passivated as standard, or mechanical zinc
Other finishes Other platings & finishes are available to special order subject to quantity
Tensile strength 800N/mm2 Case hardened
Other sizes Other lengths of all diameters are available to special order subject to quantity
Embedment concrete and brick Minimum recommended is 4.5 × bolt diameter
Soft block Minimum recommended is 75mm
